Regulus HD Lens
About Regulus HD Lens

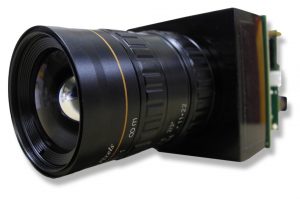

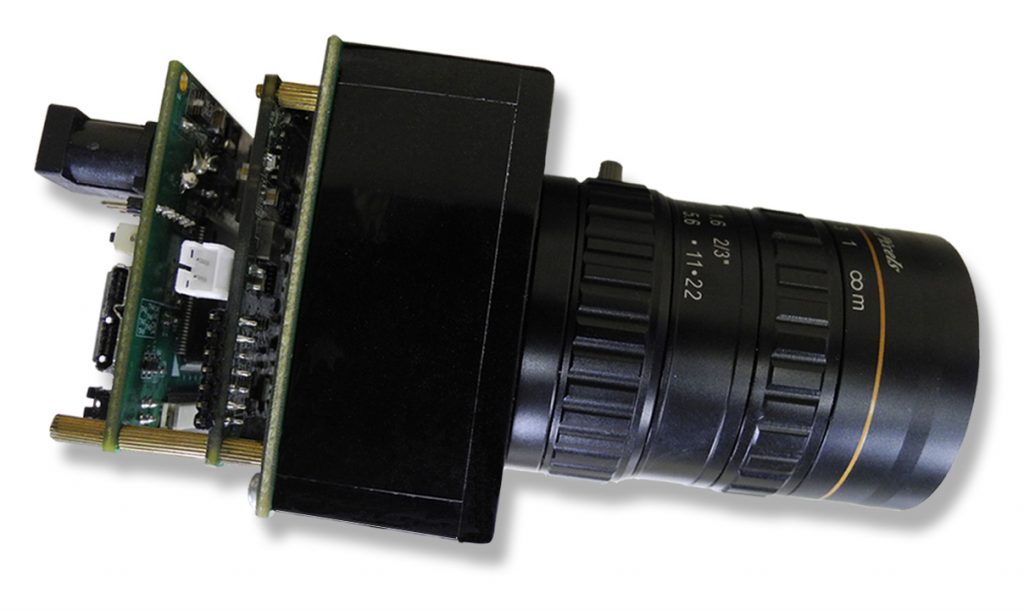

HD Lens (High Definition Lens) are designed for applications on surveillance and ITS (Intelligent Traffic System). It features C mount FA lens, 3/4″, 1″, 4/3″ 3Mega~10 Mega pixel supported, f=12mm~50mm, M=0.1x ~0.7x, adpative to 4/3″ CCD sensor (TSI KAI-08050), 1″ CCD sensor (TSI KAI-04050), 3/4″ CCD sensor(TSI KAI-02150) and all another 1/3″;1/2″;2/3″CCD or CMOS sensors.
To meet the demand for higher sensitivity and higher resolution on surveillance and ITS systems, the resolution of CCD iamge sensor is riasing up dramatically. Conventional CCTV lens can not meet the requirement of high resolution image sensors. Regulus technologies Co., Ltd. cooperates with well-known professional ODM lens manufactor to offer the HD lens to the market. The HD lens has been widely used in the applications of ITS and surveillance systems.
| # | Product | Main features | Application |
|---|---|---|---|
| 1 | HD Lens | 3/4" Lens Format. High resolution, high Contrast, low distortion, locking screws for focus and iris, Compact in size and C-Mount | ITS Camera, Surveillance Camera, Industrial Camera |
Products
| HD Lens | Model NO | CCD | EFL/(mm) | Mount | Iris Range |
|---|---|---|---|---|---|
| Mega-Pixels 3/4" | KA1412MP3 | 3/4" (2/3) | 12 | C | F1.4~C |
| KA1416MP3 | 3/4" (2/3) | 16 | C | F1.4~C | |
| KA1425MP3 | 3/4" (2/3) | 25 | C | F1.4~C | |
| KA1435MP3 | 3/4" (2/3) | 35 | C | F1.4~C | |
| KA1850MP3 | 3/4" (2/3) | 50 | C | F1.8~C | |
| Mega-Pixels 2/3" | KA1412MP3-23 | 2/3" | 12 | C | F1.4~C |
| KA1416MP3-23 | 2/3" | 16 | C | F1.4~C | |
| KA1425MP3-23 | 2/3" | 25 | C | F1.4~C | |
| KA1435MP3-23 | 2/3" | 35 | C | F1.4~C | |
| KA281236MP3-23 | 2/3" | 12~36 | C | F2.8~F16 | |
| KA1850MP3-23 | 2/3" | 50 | C | F1.8~C | |
| 5 Mega-Pixels 2/3" | KA1612MP5-23 | 2/3" | 12 | C | F1.6~F22 |
| KA1616MP5-23 | 2/3" | 16 | C | F1.6~F22 | |
| KA1425MP5-23 | 2/3" | 25 | C | F1.4~F22 | |
| KA1435MP5-23 | 2/3" | 35 | C | F1.4~F22 | |
| KA281236MP5-23 | 2/3" | 12~36 | C | F2.8~F16 | |
| Mega-Pixels 1/3" | KAT132713DCIRMP-13 | 1/3" | 2.7~13 | CS | F1.3 AUTO-IRIS |
| 5 Mega-Pixels 1" | KA1435MP5-11 | 1" | 35 | C | F1.4~F22 |
| KA1625MP5-11 | 1" | 25 | C | F1.6~F22 | |
| KA1616MP5-11 | 1" | 16 | C | F1.6~F22 | |
| KA1612MP5-11 | 1" | 12 | C | F1.6~F22 | |
| KA1620MP5-11 | 1" | 20 | C | F1.6~F22 | |
| 10 Mega-Pixels 4/3" | KA2035MP10-43 | 4/3" | 35 | C | F2.0~F22 |
| KA2050MP10-43 | 4/3" | 50 | C | F2.0~F22 | |
| KA2025MP10-43 | 4/3" | 25 | C | F2.0~F22 |
Leaguer Introduction
Leaguer Technology Co., Ltd. Introduction
(The International HD lens trading arm for Regulus)
Regulus Technologies Co., Ltd. (Regulus) works with True Sense Imaging Inc. (TSI) as its Asian distributor. Regulus owns professional technical teams and works with Chinese OEM manufacturing in HD lens, to enhance services to customers and in closer cooperation with TSI. Leaguer Technology Co., Ltd. was set up in Hong Kong to facilitate international procurement、sell and logistics services for Regulus. Regulus HD lens are designed with C/CS mount, fully matching requirement of cameras ranging from 1M-pixel to 8M-pixel. The applications include e-police、traffic monitoring、banking surveillance and some Chinese Safety City items. Since 2010, there are several customers in China and Taiwan have shipped Regulus HD lens in volume.
